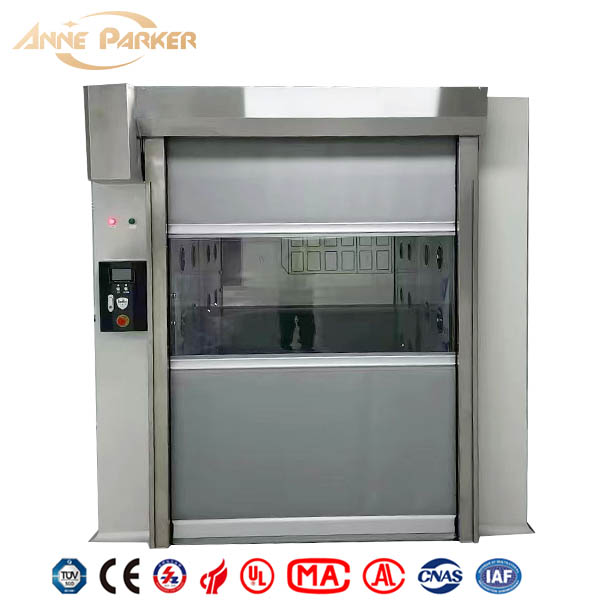

Fast Rolling Door Industrial cargo Air Shower for Clean Room

Fast Rolling Door Industrial cargo Air Shower Product features:

1. It is used for the entry and exit of goods between the high-level clean area and the

low-level clean area to prevent unclean air from entering the high-level clean area.

2. The work area is equipped with a blowing purification treatment device to eliminate

the dust attached to the surface of the object, with the effect of air lock chamber.

3. Voice prompt, automatic control, infrared sensor, three sides of the air automatic spray.

4. Nozzle blowing speed up to 18-25m/s, blowing time 10 to 99 seconds adjustable.

5. Power supply: 380V/50Hz/4.0KW

6. Automatic rolling door is convenient to use, a beautiful appearance.

7. Interlock device to ensure that both sides of the door can not be opened at the same

time in the working state, safe and reliable.

8. the door glass window can observe the situation in the work area at any time, easy to use

9. HEPA filter efficiency: 99.99%@0.3μm

Fast Rolling Door Industrial cargo Air Shower Technical parameters:

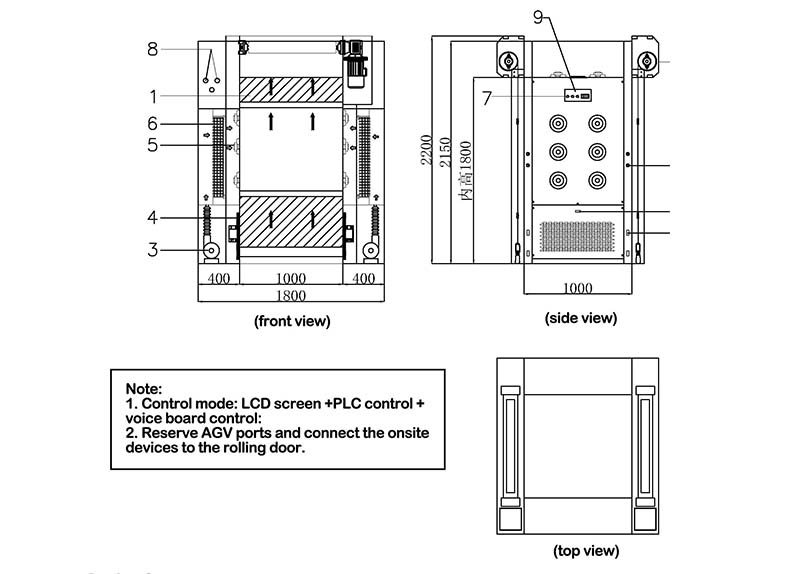

1. Specifications: W1800×D1000×H2150 (outside)

                                   W1000×D1000×H1800 (inner)

2. Material:

a. The box and inner liner are made of stainless steel 304 sanding plate

material, and the surface is naturally sanded；

b. No inner bottom plate, easy to move the trolley;

3. Door material: Automatic door mechanism + PVC curtain:

Automatic rolling door technical parameters:

1. Frame material: The door frame material is stainless steel sanding 304T1.5

2. Curtain material: Transparent PVC film transparent window can be

rectangular or oval, increased safety and management convenience,

thickness: 1.5mm

3. Features:

a. Speed of turn on and off: 0.6-1.0m/s

b. Power: Door operator, three-phase 380V, 50HZ, IP55, 0.75~3.0kw

c. Control mode:

1. Button type 2. Remote control type 3. Microwave probe

4. Automatic door motor service life: a total of 250,000 switching times
