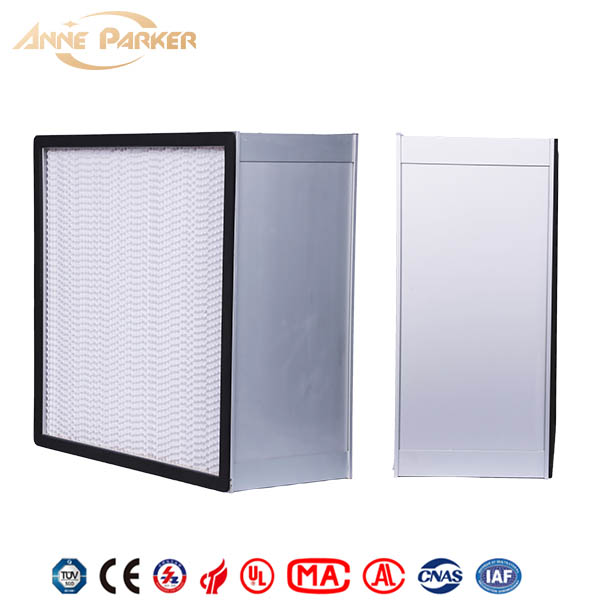

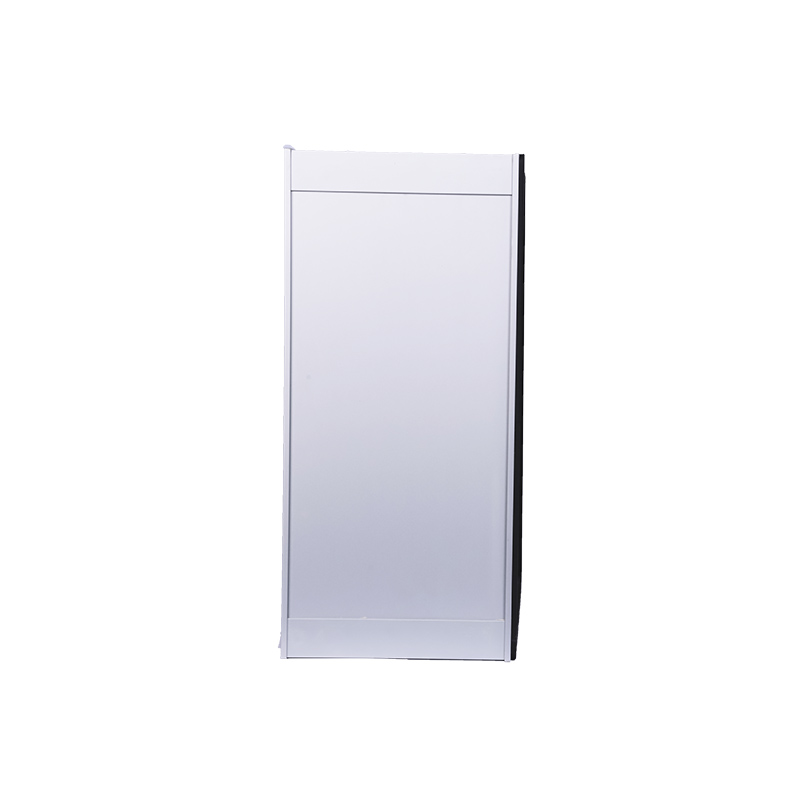

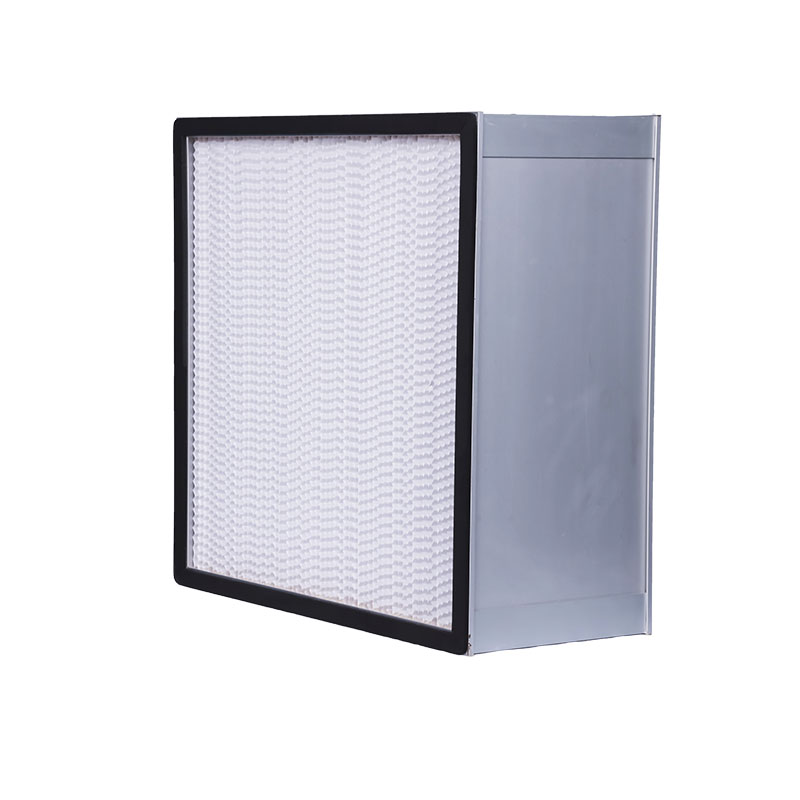

High large air flow capacity separator deep pleat hepa filter box
For Medical Room, Semiconductor factory, precision instrument factory, pharmaceutical factory.
An ULPA filter can remove from the air at least 99.999% of dust, pollen, mold, bacteria, viruses, and any airborne particles
with a particle size of 100 nanometers (0.1 µm)
Features of HEPA filters with partitions:
1. Filter material: ultra-fine glass fiber;
2. Partition: offset paper or aluminum foil;
3. Sealant: new polyurethane sealant;
4. Outer frame: stainless steel, aluminum alloy, or galvanized sheet;
5. H13 and above are HEPA filters;
6. Low resistance, large dust holding capacity, and good wind speed uniformity.
.
|
Model |
Size(mm) |
Rated air volume（m³/h） |
Initial resistance (Pa) |
Efficiency % |
|
AN-5A |
320*320*220 |
500 |
Straight partition structure ≤250 |
0.3μm≥99.97% |
|
AN-7A |
484*484*150 |
700 |
||
|
AN-8A |
600*600*150 |
800 |
||
|
AN-10A |
484*484*200 |
1000 |
||
|
AN-10B |
610*610*150 |
|||
|
AN-12A |
820*600*150 |
1200 |
||
|
AN-15A |
630*630*220 |
1500 |
||
|
AN-15B |
726*484*220 |
|||
|
AN-15C |
915*610*150 |
|||
|
AN-15D |
820*600*200 |
|||
|
AN-20A |
968*484*220 |
2000 |
||
|
AN-20B |
1220*610*150 |
|||
|
AN-30A |
1260*630*220 |
3000 |

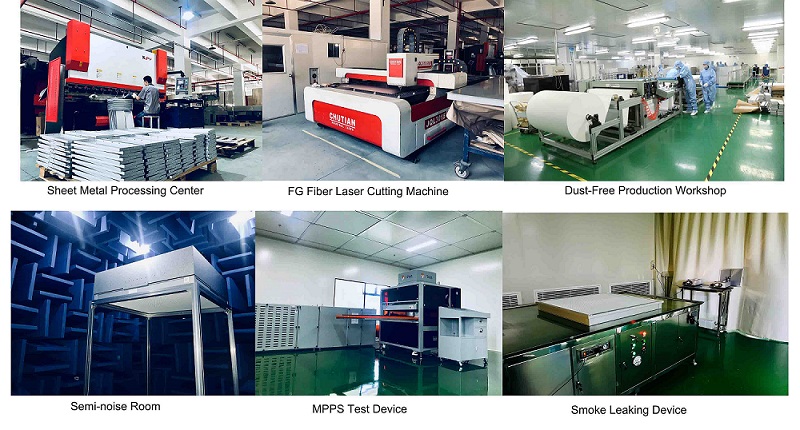

Factory Show
