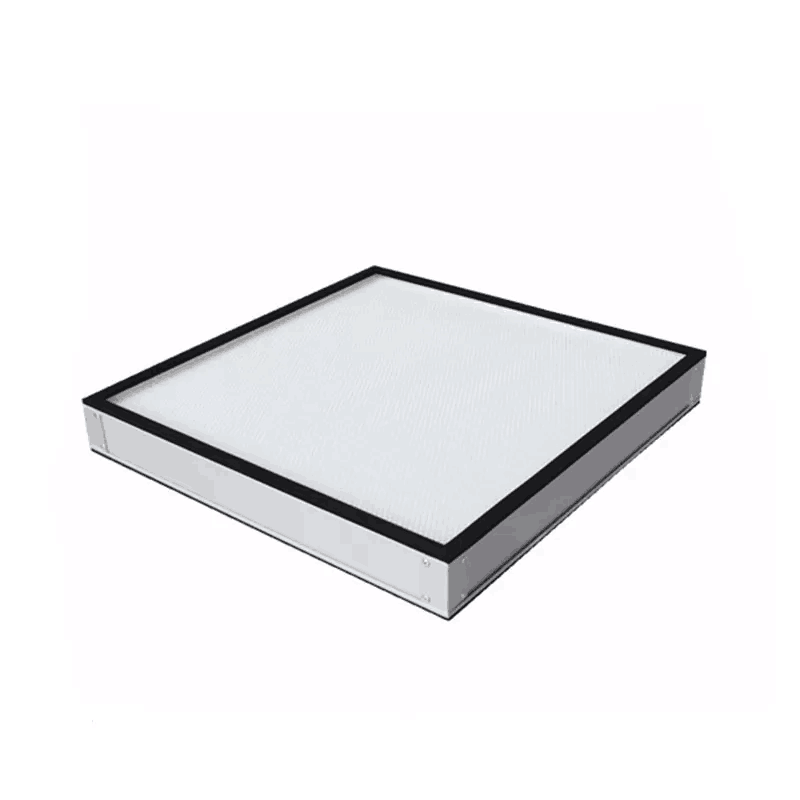

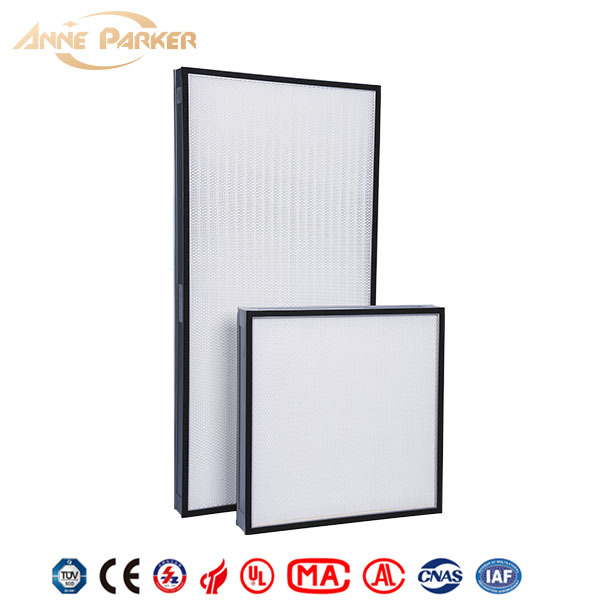

U15 Clean Room MIni Pleated Hepa panel filter
1. Mini-pleat design, low resistance, operational cost saving
2. Wide application,space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13), 99.995%@MPPS(H14)
5. Mini pleat of fiberglass media with lowest resistance
6. Individually tested for certificated leak proof
7. Gel seal design
8. Hotmelt separators
9. Lightweight and compact
10. Unique construction
11. Energy saving design
U15 Clean Room MIni Pleated Hepa panel filter Product Details
Type: Mini-pleat HEPA filter
Gasket: CR, EVA, EPDM, PU
Frame: Extruded aluminum.
Face guard: Baking finish
Separator: Hot-melt beads.
Filter class(EN1822):U15,U16,U17
Media: H&V Glass fiber, PTFE
Recommended final pressure drop.: 500 Pa.
Temperature / Humidity: 70°C / 100% RH
|
Size W*H*D(mm) |
Efficiency |
Air Flow(m³/h) |
Initial resistance (Pa) |
Application |
|
1170*1170*70 |
H13 |
2000 |
110 |
Continuous operating temperature ≤70℃ Humidity resistance ≤95%RH Recommended final resistance ≤2 times of initial resistance |
|
1170*1170*70 |
H14 |
2000 |
125 |
|
|
1170*1170*70 |
U15 |
2000 |
140 |
|
|
1170*570*70 |
H13 |
1000 |
110 |
|
|
1170*570*70 |
H14 |
1000 |
125 |
|
|
1170*570*70 |
U15 |
1000 |
140 |
|
|
1170*1170*80 |
H13 |
2000 |
90 |
|
|
1170*1170*80 |
H14 |
2000 |
105 |
|
|
1170*1170*80 |
U15 |
2000 |
120 |
|
|
1170*570*80 |
H13 |
1000 |
90 |
|
|
1170*570*80 |
H14 |
1000 |
105 |
|
|
1170*570*80 |
U15 |
1000 |
120 |
|
|
1170*1170*90 |
H13 |
2000 |
70 |
|
|
1170*1170*90 |
H14 |
2000 |
95 |
|
|
1170*1170*90 |
U15 |
2000 |
100 |
|
|
1170*570*90 |
H13 |
1000 |
70 |
|
|
1170*570*90 |
H14 |
1000 |
95 |
|
|
1170*570*90 |
U15 |
1000 |
100 |
|
|
1170*1170*110 |
H13 |
2000 |
60 |
|
|
1170*1170*110 |
H14 |
2000 |
85 |
|
|
1170*1170*110 |
U15 |
2000 |
90 |
|
|
1170*570*110 |
H13 |
1000 |
60 |
|
|
1170*570*110 |
H14 |
1000 |
85 |
|
|
1170*570*110 |
U15 |
1000 |
90 |

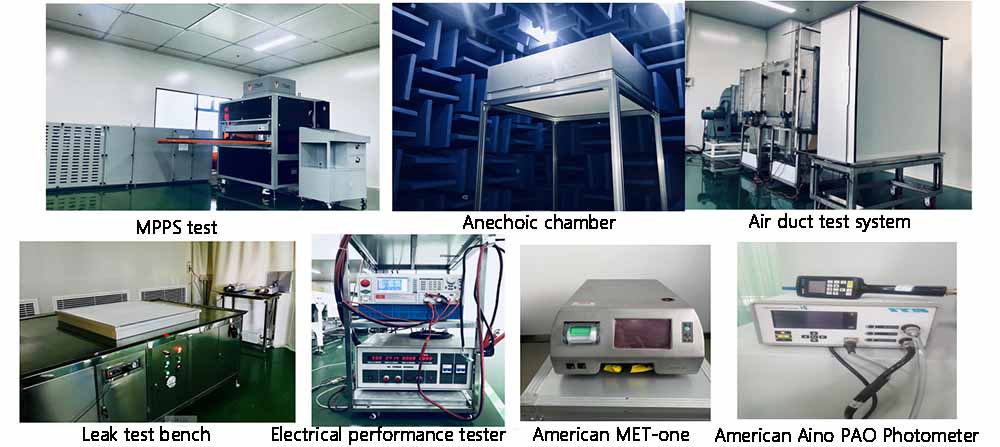

Test Equipment
