High performance filter knife edge frame mini plate hepa filter

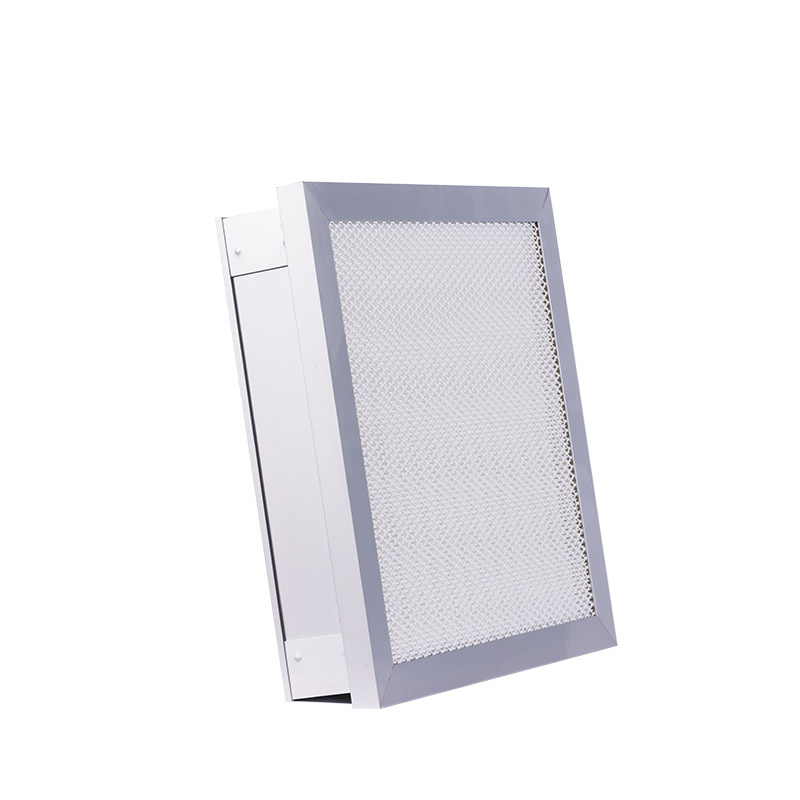

Knife edge mini plate HEPA Filter Product Details

1. Features of knife-type HEPA filter:

1. The aluminum profile frame is directly equipped with a 40mm deep side curtain knife-type structure, which can be directly inserted into the liquid tank sealing device to ensure high sealing, easy installation, and good sealing performance;

2. Filter material: ultra-fine glass fiber filter paper; the pleat spacing is equal to ensure the best airflow and achieve high dust holding capacity;

3. Frame sealant: PU two-component polyurethane glue;

4. Divider: EVA hot melt glue;

5. Filtration efficiency: 99.99%~99.9995% @ 0.3μm;

6. Maximum operating temperature: 70~80℃; Maximum operating humidity: 100%;

7. Optional thickness of aluminum profile: 70mm, 90mm, 110mm.

2. Precautions for using knife-type HEPA filters:

1. Regularly check whether there is any debris blocking the air inlet surface and whether the filter material surface is damaged;

2. If there is any object blocking the surface, it should be removed; if the surface of the product filter material is severely damaged, it must be plugged; if the surface damage cannot be repaired, a new filter must be replaced;

3. During installation, ensure that the pressure edge of the frame is well sealed to prevent air leakage; do not hit the surface of the filter with heavy objects, and do not pull the filter material surface with force; during installation, the pressure on the frame around the filter should be uniform;

4. Ensure that the product has a filter with an efficiency of F8 or above as a pre-filter for protection.
