1. Mini pleat hepa filter Mini-pleat design, low resistance, operational cost saving
2. Wide application,space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13), 99.995%@MPPS(H14)
5. Mini pleat of fiberglass media with lowest resistance
6. Individually tested for certificated leak proof
7. Gel seal design
8. Hotmelt separators
9. Lightweight and compact
10. Unique construction
11. Energy saving design
Applications: Applicable to clean room and other area with stringent clean air requirements
Applicable conditions: Working temperature(ºC) ≤ 70(158ºF)
Mini pleat hepa filter Features
1. Mini-pleat design, low resistance, operational cost saving
2. Wide application,space-saving
3. Ultra-thin design, installation space-saving
4. Efficiency:99.95%@MPPS(H13), 99.995%@MPPS(H14)
5. Mini pleat of fiberglass media with lowest resistance
6. Individually tested for certificated leak proof
7. Gel seal design
8. Hotmelt separators
9. Lightweight and compact
10. Unique construction
11. Energy saving design
Product Details
Type: Mini-pleat HEPA filter
Gasket: CR,EVA,EPDM,PU
Frame: Extruded aluminum.
Face guard: Baking finish
Separator: Hot-melt beads.
Filter class(EN1822):H12, H13,H14
Media: H&V Glass fiber, PTFE Recommended final pressure drop.: 500 Pa
Temperature / Humidity: 70°C / 100% RH

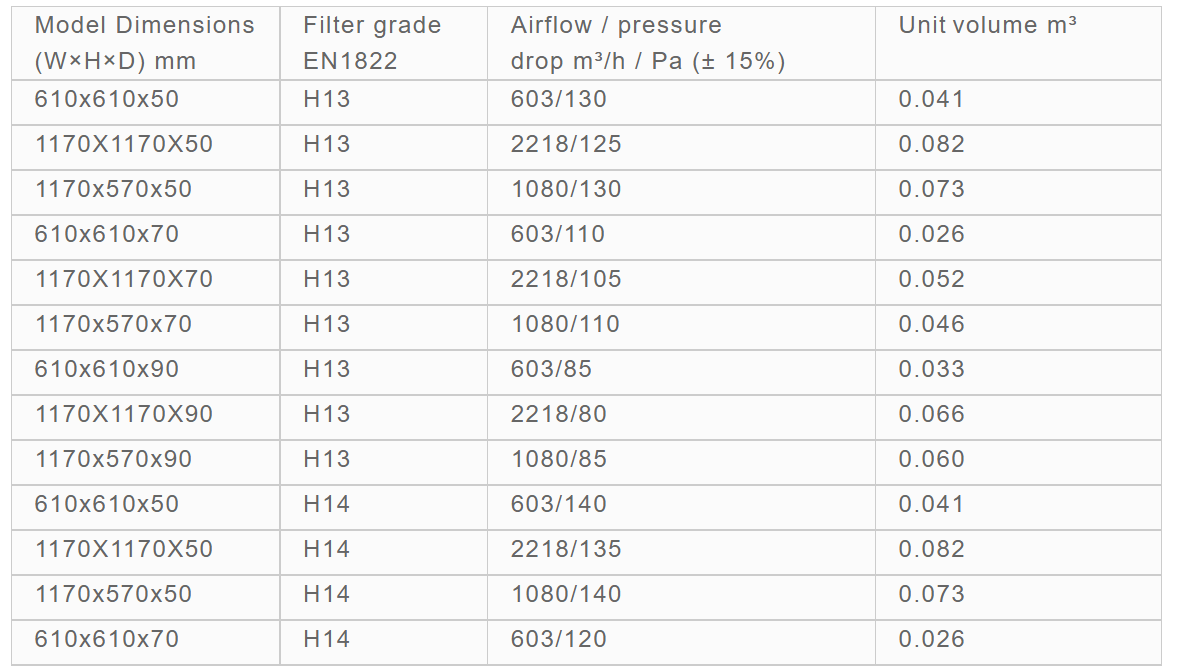

We not only produce all kinds of different normal size Mini-pleat HEPA filter, but also accept all kinds of customized size Mini-pleat HEPA filter.Please choose what size you want to buy refer to the below table.
