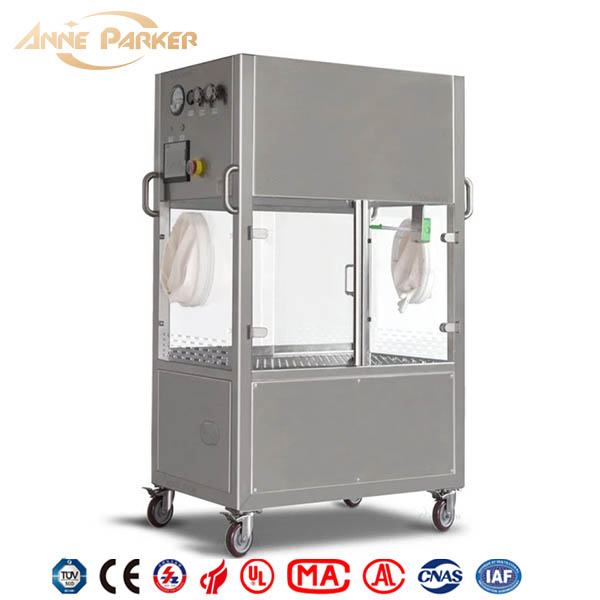

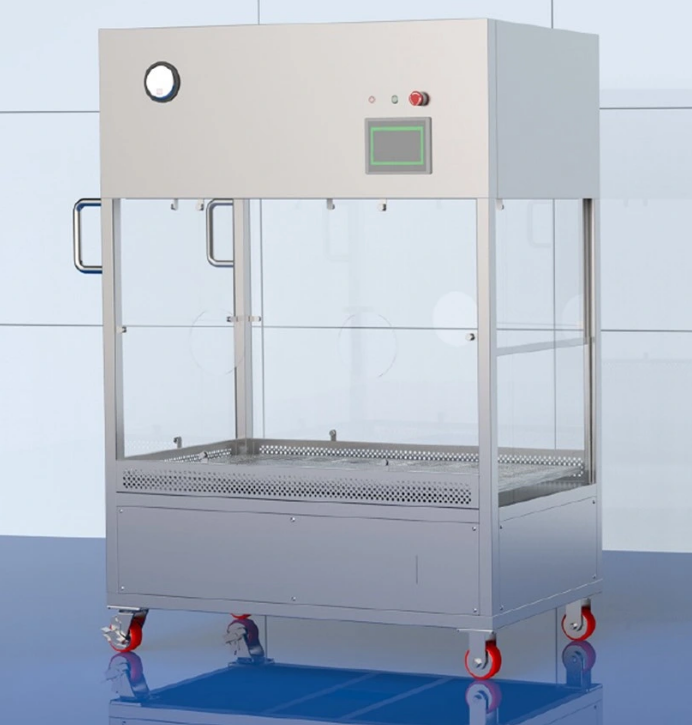

Aseptic Laminar Flow Transfer Vehicle

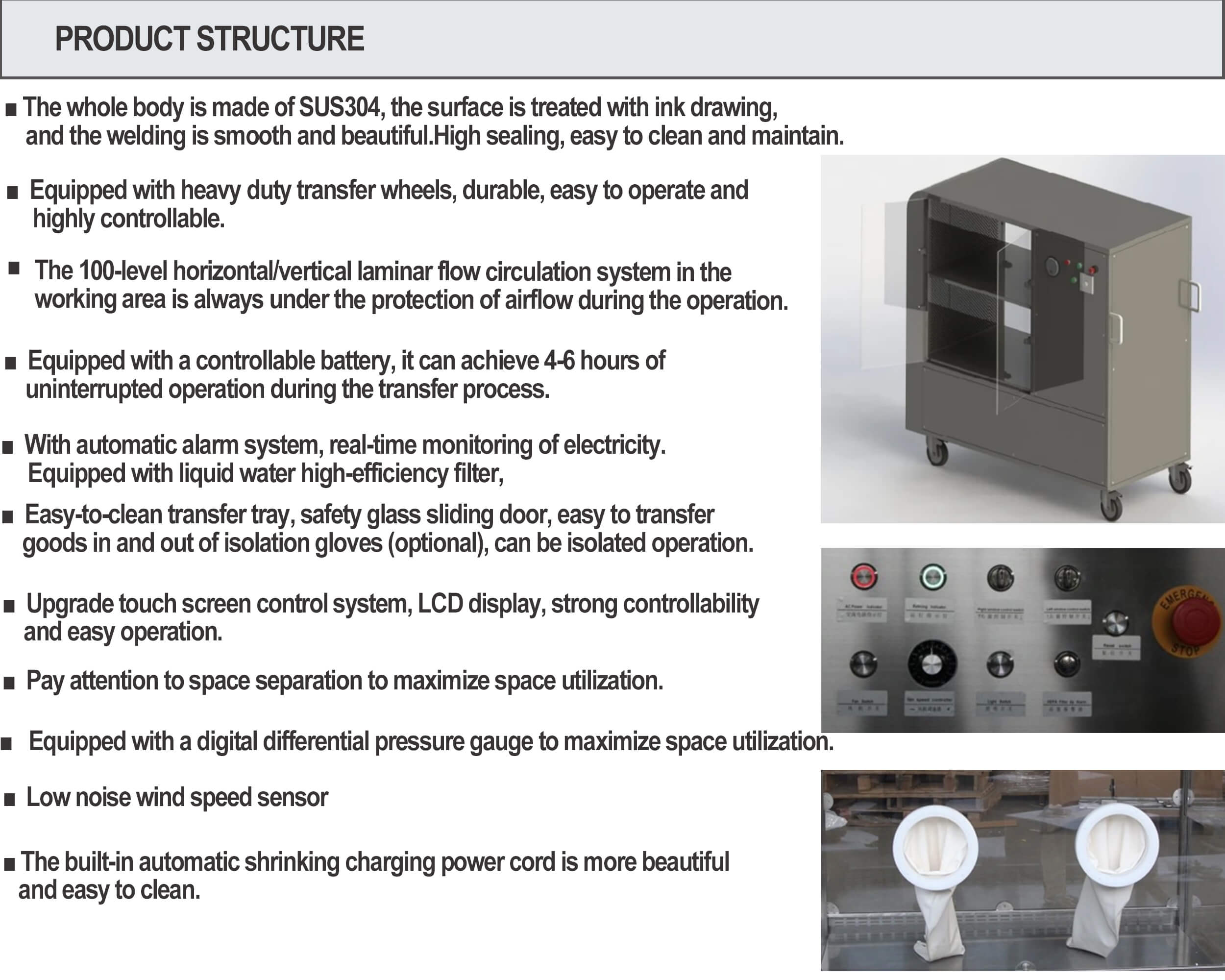

1.Made by SUS304, with compact structure, concise appearance     and easy maintenance.

2.Grade A vertical laminar airflow to protect goods inside the          working area, it is conform to the GMP requirements.

3.Sliding door at the back of work space is made of safety glass       and can been arbitrary position in vertical direction, convenient for goods moving in and out.

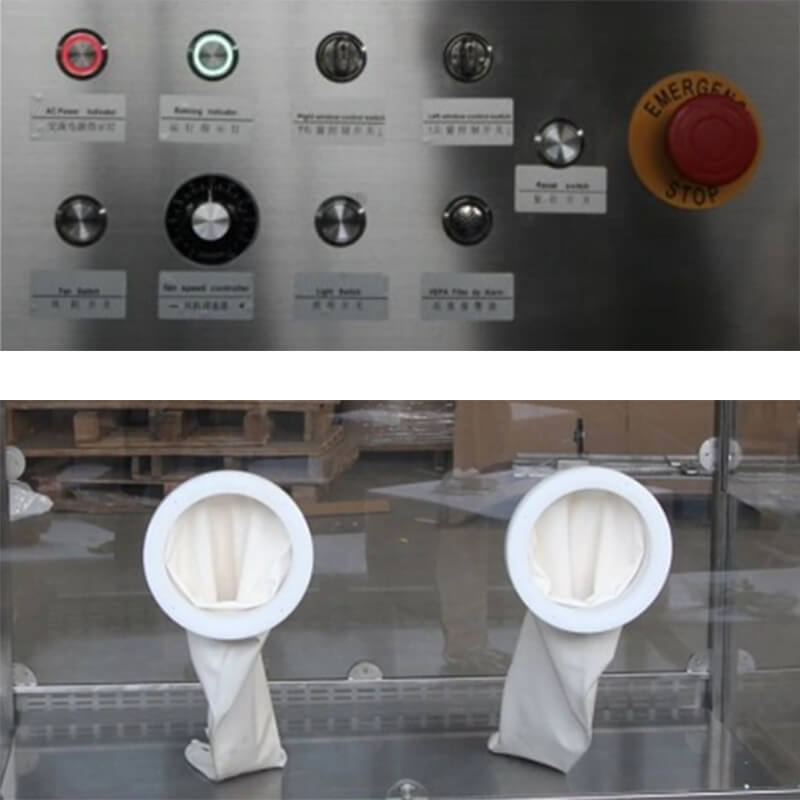

4 Sterile gloves set in the front of the workspace are for the operating in isolation.

5.Adopted touch screen displaying control system, user-friendly interface, easy to operate.

6,Air velocity sensor system could realize the real-time monitor air velocity monitoring, and with alarm function for abnormal air velocity.

7.USA dwyer differential pressure gauge is equipped to real-time monitor HEPA filter.

8. The air outlet with uniform flow polymer film ensures uniform air supply, which conform to GMP requirements.

9. Air supply system with stepless speed regulation function.

10 the work area is equipped with low energy consumption, high stability electric lifting platform

11 .Use UPS combined battery power with display to facilitate the power actual monitoring, could automatic conversion between the electric supply and storage.
