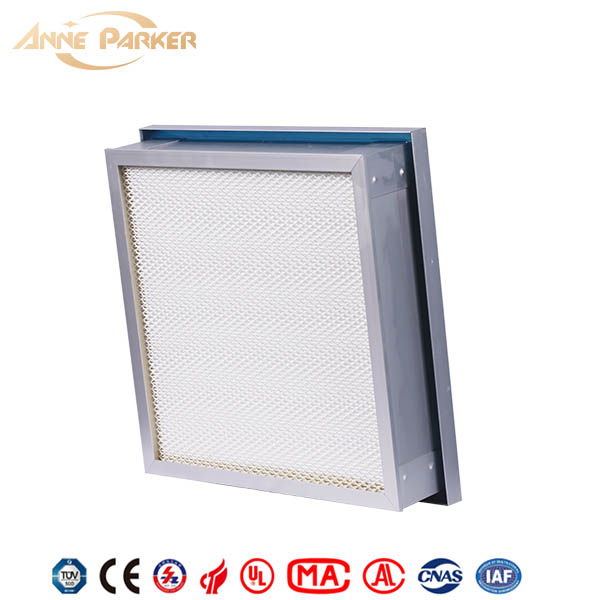

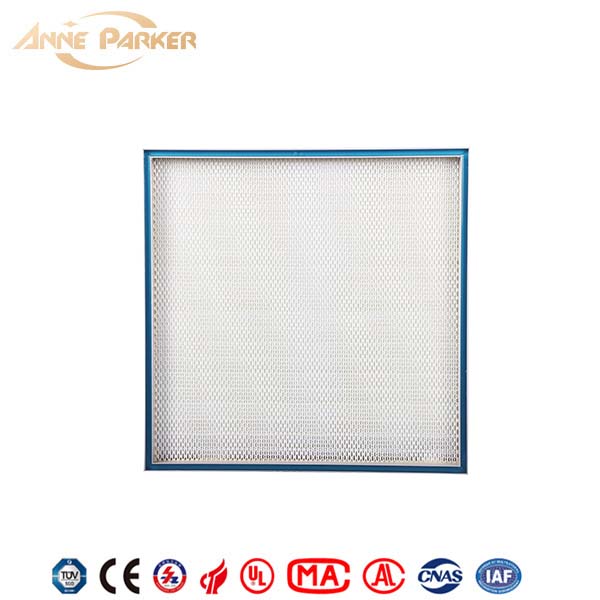

Clean room gel seal Pleated HEPA filter
Clean room gel seal Pleated HEPA filter
Product Features: Mini-pleat filter, High-quality fiberglass, Compact, Easy to install, Tank design, Good sealing, No leakage occurs.
Effectiveness:99.95%(H13)@0.3μm，99.9995%（H14)@0.3μm，99.9995%（U15)@0.12μm
Use: Suitable for cleanroom end, GMP pharmaceutical factory supporting purification equipment
Clean room gel seal Pleated HEPA filter
•Liquid tank seal design ensures perfect sealing
International brand liquid tank glue seal design, excellent chemical stability, corrosion resistance, mildew resistance, not easy to breed bacteria and moderate hardness, even if repeatedly disassembled and assembled, it can still maintain good sealing after a period of static.
•Strict material selection, extremely low chemical volatility
All components are made of extremely low chemical volatility materials to meet the requirements of conventional clean rooms and air filtration equipment.
•Compact structure, easy to install and replace
The frame of the Gel seal Hepa Filter uses flange-type aluminum profiles and uses imported phosphorus-free polyurethane glue to seal the waterproof and flame-retardant glass fiber filter element with good hot melt adhesive spacing, and then supplemented with face guard nets, jelly glue and other components. Compact structure, small and light, easy to install and replace.
•No partition structure, low resistance, good energy-saving
Use specially designed hot melt glue to separate the high-efficiency filter paper to ensure that the filter paper has the same and reasonable spacing, and can make full use of the filter paper to achieve uniform wind speed and low resistance.
• Test efficiency according to EN1822 to ensure efficiency
According to EN1 822 standard, use the PMS laser particle counter and PSL test particles to test the filter using the MPPS (most penetrating particle size) method to ensure that the filter efficiency meets the requirements. Provide online test report.
Clean room gel seal Pleated HEPA filter
| Dimensions | Air volume | Rated initial resistance | ||||
| Top gel seal filter | W*H*D(MM) | (m³/h) 0.45m/s | H13(Pa) | H14(Pa) | U15(Pa) | U16(Pa) |
| 610*610*95 570*1170*95 | 600/1080 | 108 | 113 | 123 | 143 | |
| 610*610*104 570*1170*104 | 600/1080 | 73 | 83 | 93 | 113 | |
| Side gel seal filter | 610*610*69 570*1170*69 | 525/970 | 100 | 105 | 120 | 135 |
| 610*610*90 670*670*90 | 572/970 | 75 | 80 | 95 | 110 | |
| 610*610*117 570*1170*117 | 525/970 | 65 | 70 | 75 | 90 | |
Clean room gel seal Pleated HEPA filter

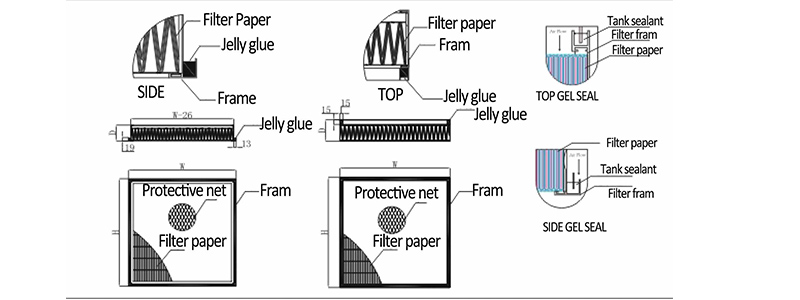

Clean room gel seal Pleated HEPA filter drawing
