Advantages & Benefits
Wedge fold design to prevent filter material damage. Ultra-fine glass fiber high density filter paper, water resistant, flame retardant. 100% leak-free, assembly tests are carried out in a controlled and clean environment. High temperature resistant design, suitable for high temperature environment.
Specifications
|
Frame |
Galvanized frame, stainless steel frame |
|
Filter material |
Special ultrafine glass fiber filter paper |
|
Product thickness |
150mm/220mm/292mm |
|
Filtration efficiency |
H13(EN1822) |
|
Fire rating |
UL900 in authentication |
|
Maximum service temperature |
≤150℃，≤250℃ |
|
Suggested final resistance |
≤500Pa |
|
Main applications |
High temperature purification equipment and special high temperature air supply system. Widely used in pharmaceutical, medical, chemical, food, painting and other industries |
|
Sealant |
Temperature-resistant silica gel |
|
Protecting net |
Stainless steel net, alumina net (optional) |
|
Filter material segmentation |
Corrugated aluminum foil |
|
Sealing gasket |
High temperature resistant silicon rubber |
Dimensioning
|
|
Nominal size (Inch) W*H*D (mm) |
Actual size (Inch) W*H*D (mm) |
Air volume (m³/h) |
Wind speed (m/s) |

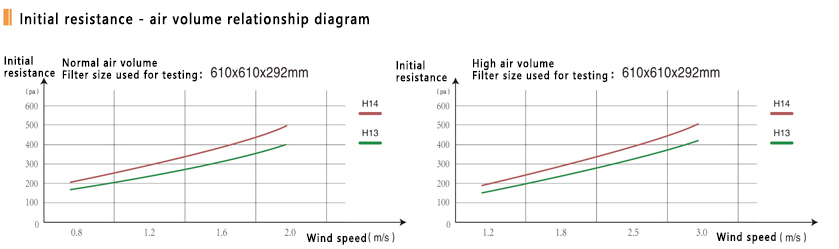

Rated initial resistance (Pa) |
|
H13 |
|||||
|
Normal air volume |
24*24*6 |
610*610*150 |
1000 |
0.75 |
250 |
|
24*24*9 |
610*610*220 |
1300 |
1 |
||
|
24*24*12 |
610*610*292 |
1700 |
1.3 |
||
|
High air volume |
24*24*6 |
610*610*150 |
1600 |
1.2 |
350 |
|
24*24*9 |
610*610*220 |
2600 |
2 |
||
|
24*24*12 |
610*610*292 |
3300 |
2.5 |

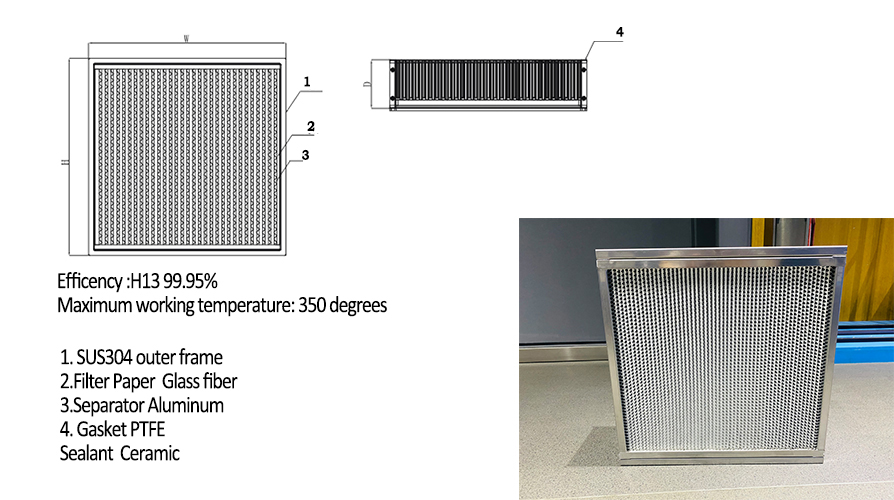

Drawing
