Product Description

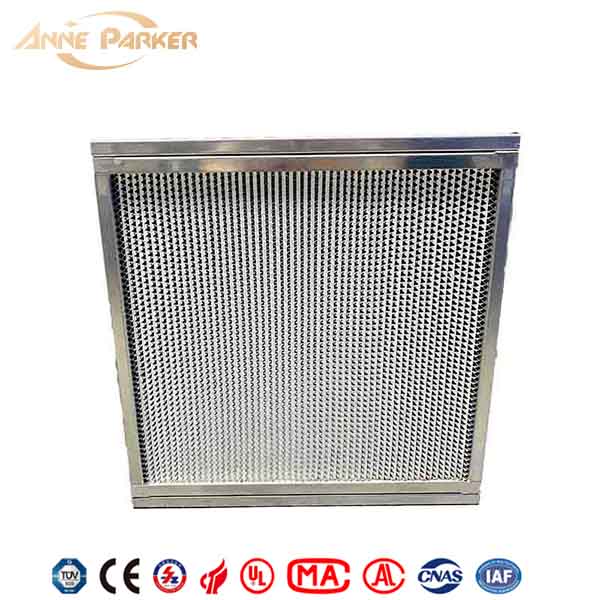

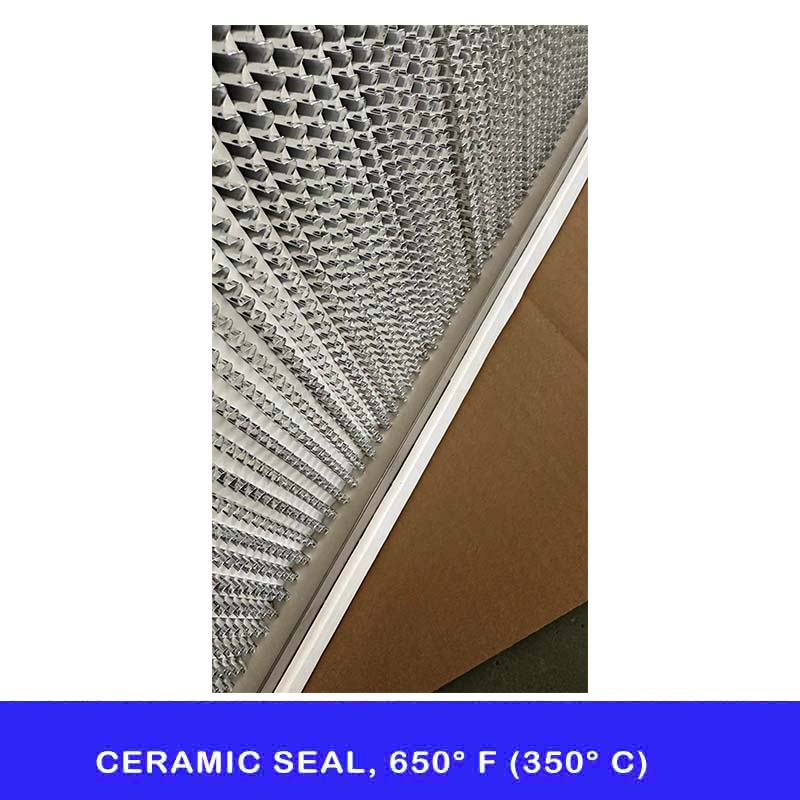

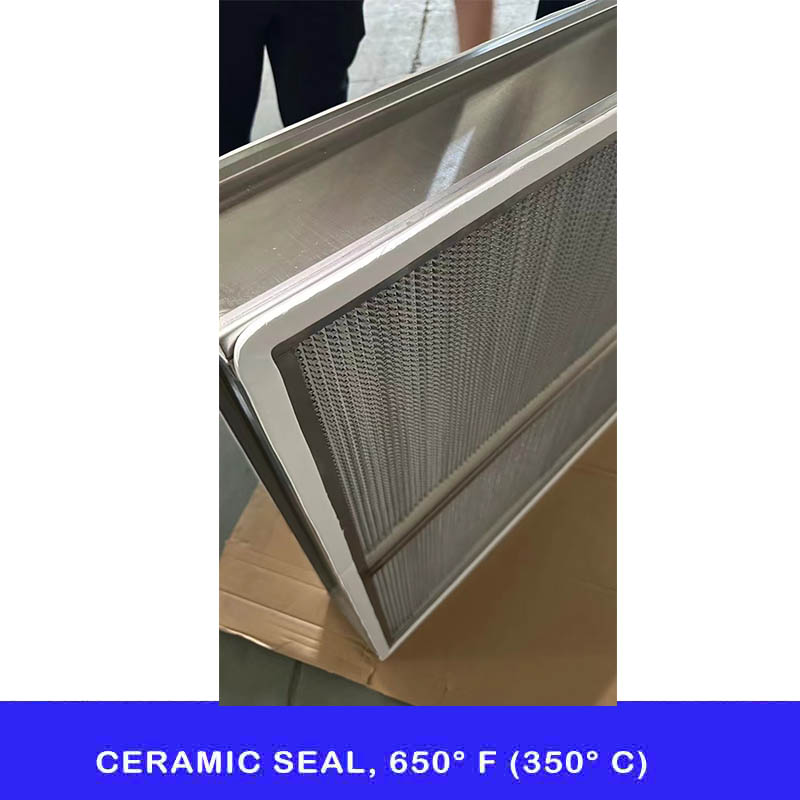

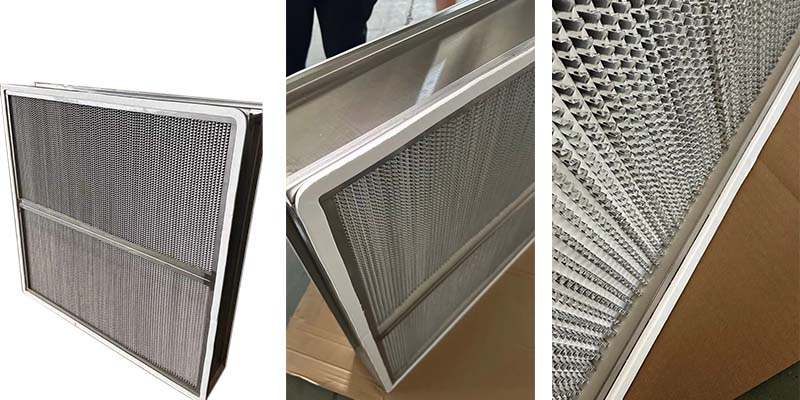

High-temperature HEPA air filters Ceramic seal 650° F (350° C)
350℃ high-temperature resistant filter
Main applications: Food & pharma industrial, Special design for chemical/formaldehyde factory, Silicone free design high-temperature HEPA filter
Efficiency: H13≥99.95%@0.3μm (EN1822)
Filter material separation: aluminum foil corrugated plate
Filter material: Glass fiber filter paper
Continuous operating temperature: ≤350℃
Gasket: Silicone/PTFE
Humidity: ≤100% RH
Sealant: Ceramic glue
Recommended maximum final resistance: 500Pa
| Model | Size (mm) | Air volume (m³/h) | Initial resistance (Pa) | Efficiency |
| HT-305-305-150-T350 | 305*305*150 | 250 | 250 | H13 |
| HT-610-305-150-T350 | 610*305*150 | 500 | 250 | H13 |
| HT-610-610-150-T350 | 610*610*150 | 1000 | 250 | H13 |
| HT-915-610-150-T350 | 915*610*150 | 1500 | 250 | H13 |
| HT-305-305-292-T350 | 305*305*292 | 435 | 250 | H13 |
| HT-610-305-292-T350 | 610*305*292 | 870 | 250 | H13 |
| HT-610-610-292-T350 | 610*610*292 | 1740 | 250 | H13 |
| HT-915-610-292-T350 | 915*610*292 | 2620 | 250 | H13 |
